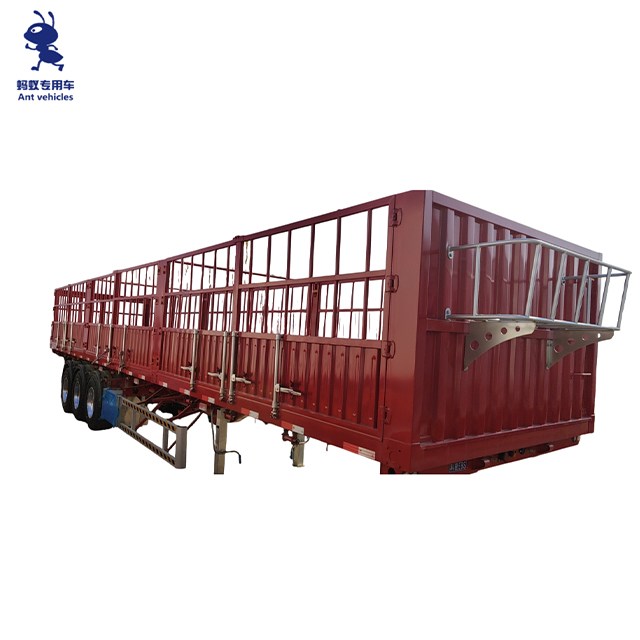

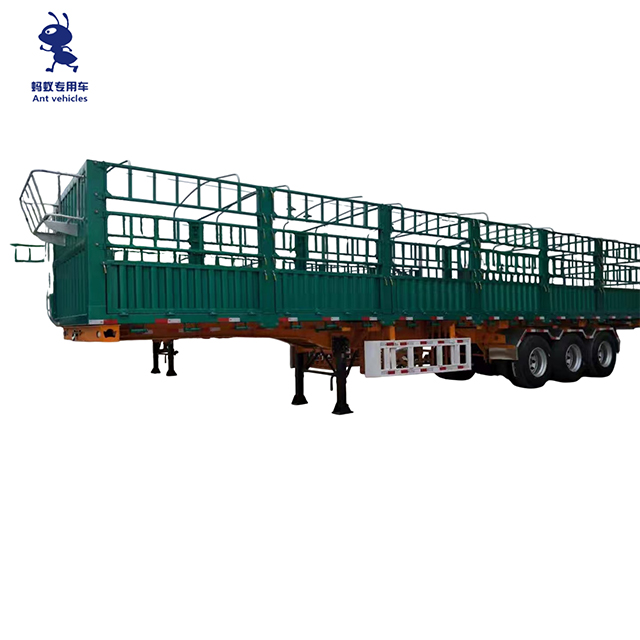

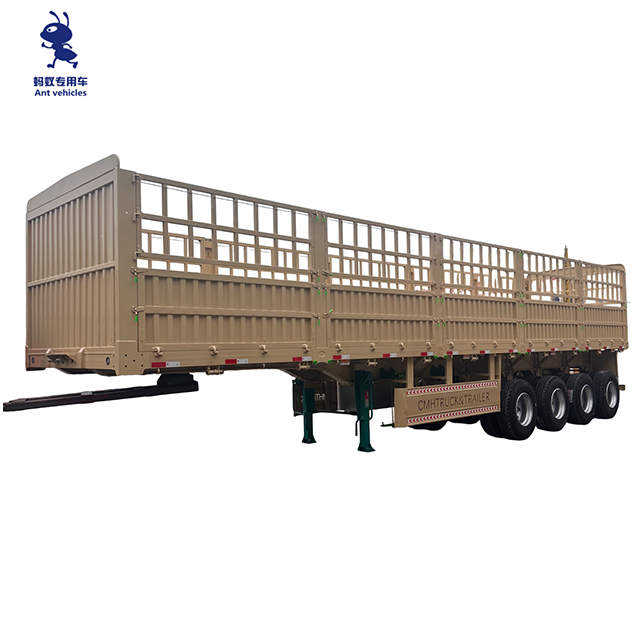

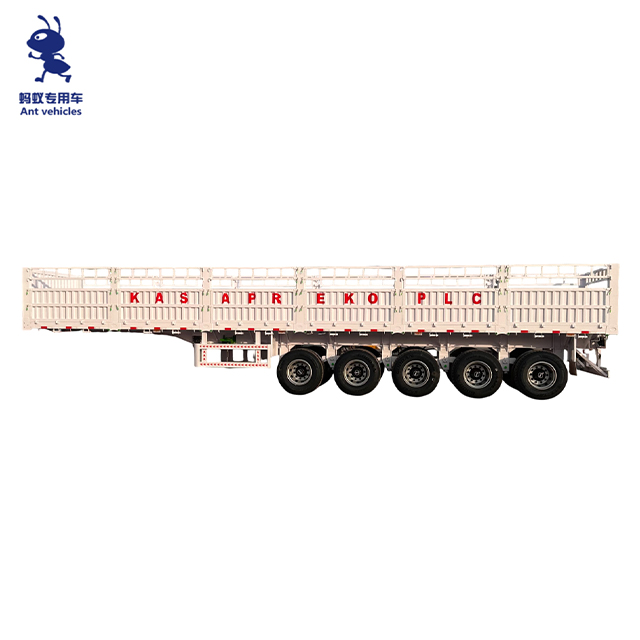

12.5M Fence Semi Trailer


Availability:

Quantity:



Inquire Add to Basket

Product Description

Company Profile

FAQ

The 12.5M Fence Semi Trailer is built for heavy-duty transport, featuring a robust steel frame, high-strength side fences, and a reinforced chassis. Its spacious 12.5-meter design ensures ample cargo capacity, while the secure fencing prevents load shifting.

Specification

Category	Fence semi trailer
Overall Dimension(mm)	Length×width×height:12500×3200×3500
Inner Dimension(mm)	length×width×height:12300×2450×800+400mm
Payload (kg)	45000Kg
Axle Space(mm)	Optional
Tire	type:12R22.5,equip 13pcs per chassis
Rim	Type9.0, equip 13pcs per chassis
Axle	13T,3 sets, without ABS Frontaxle air suspension
Brake System	Dual air brake system,30/30 type, WABCObrake valve
Suspension	3-axle mechanical suspension with 8 pieces

Product Advantage

1.Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.

2.Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.

3.Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.

4.Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.

5.Tool Box: Large capacity water-proof detachable tool box.

6.Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.

7.Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold presse
