If you’ve ever watched a flatbed operator roll off the lot with an overhang that looks like a dare, or struggled to squeeze one more coil onto a 48‑foot deck, you already know the pain. Flatbed hauling is a game of inches and pounds—and getting the dimensions wrong costs you time, money, and unnecessary stress.
But here’s the good news: once you truly understand flatbed trailer dimensions, you can stop guessing and start loading with confidence. Let’s unlock the numbers, the legal limits, and the smart strategies that help you carry more while worrying less.

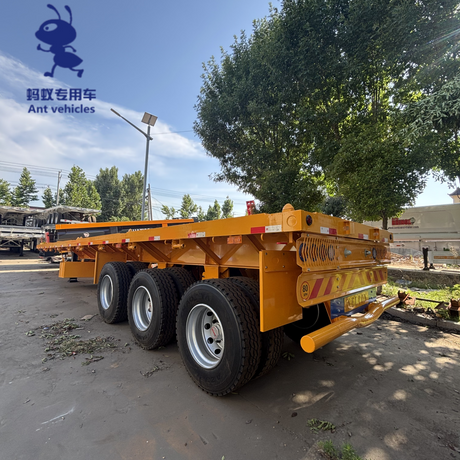

Most over‑the‑road flatbed trailers fall into two main categories: 48 feet and 53 feet long. Width is almost universally 8.5 feet (102 inches) – that’s the legal maximum on most US highways without a special permit. Height? Since flatbeds have no roof, you’re only limited by bridge clearances and cargo stability, but the deck itself sits roughly 48–60 inches off the ground.
48‑foot flatbed – Usable deck length: ~48 ft.
Ideal for regional hauling, steel coils, concrete panels, or machinery that doesn’t stretch past 45 feet.
Payload sweet spot: ~45,000–48,000 lbs depending on axle configuration and trailer weight.
53‑foot flatbed – Usable deck length: ~53 ft.
The king of long, light-to-medium freight. Perfect for lumber, pipes, rebar, and building materials.
Payload sweet spot: ~43,000–46,000 lbs (heavier trailer eats into payload).
Why does the 53‑footer sometimes carry less weight than a 48? Because the trailer itself weighs more—around 14,000–15,000 lbs compared to 12,000–13,000 lbs for a 48‑footer. Weight is your real enemy, not length. More on that in a moment.
Not all flatbeds are created equal. The standard flatbed has a straight deck. But if you haul taller freight (over 9 ft) or construction equipment, you need a different tool:
Step deck (drop deck) – Drops the deck height to about 36 inches behind the gooseneck.
Dimensions: usually 48–53 ft long, 8.5 ft wide. The lower deck allows up to 10 ft of vertical clearance before hitting the 13 ft 6 in legal height limit.
Payload: slightly less than a straight flatbed because of extra steel in the step-up area.

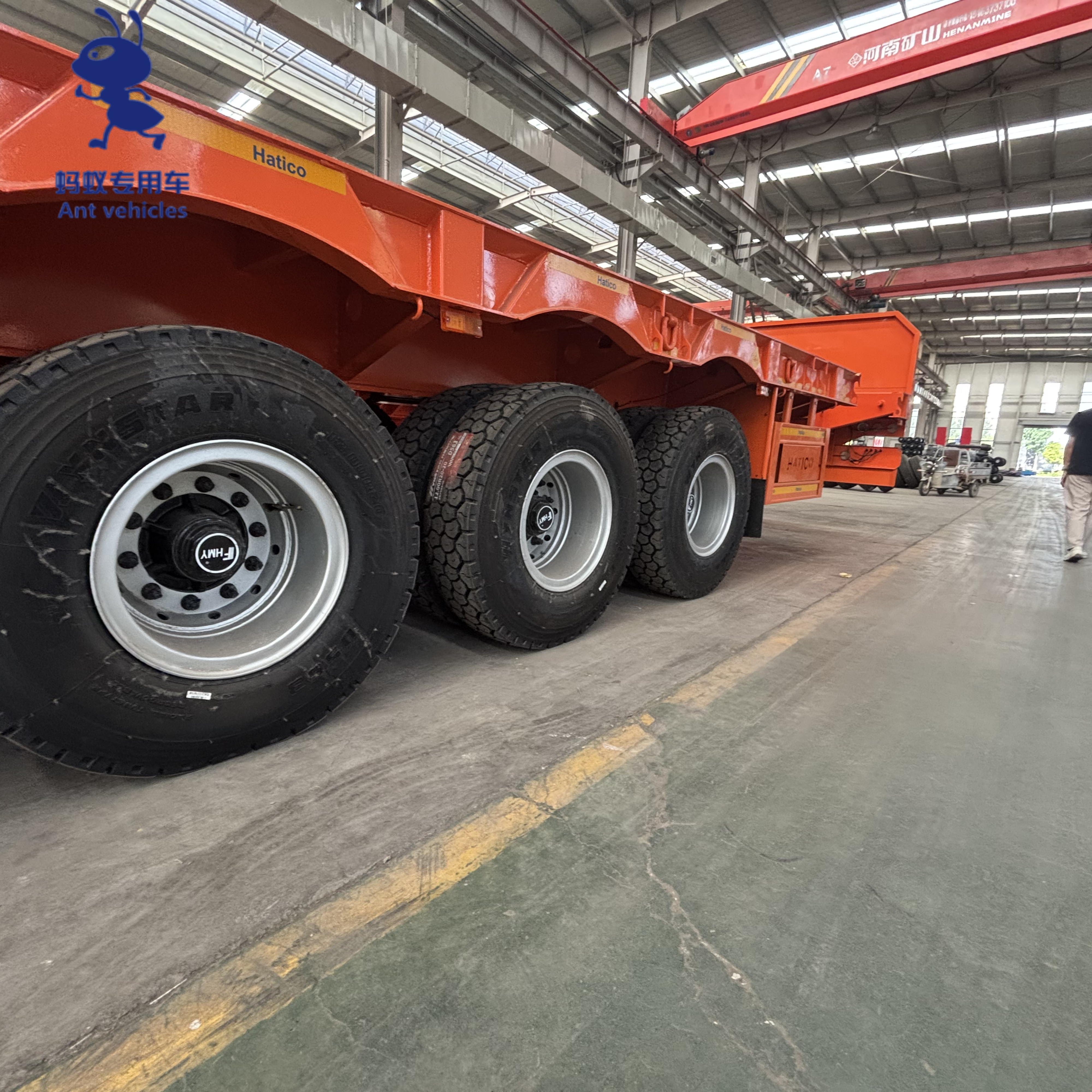

Lowboy trailer – For heavy equipment (excavators, bulldozers). Deck height as low as 18–24 inches. Typically 24–29 ft long on the well, plus a removable gooseneck. Requires permits for oversized loads.
Stretch flatbed / extendable – Some specialized trailers pull out from 48 ft to 80+ ft. Great for wind turbine blades or trusses, but remember: longer doesn’t mean heavier. It means lighter per foot and more chance of bending.
This is where most drivers lose money. You can have a 53‑foot trailer, but if you load it to a true 48,000 lbs and put all that weight over the rear axles, you’ll be overweight at every scale.
The Federal Bridge Gross Weight Formula (and state equivalents) limits your total weight based on axle spacing. The goal: spread out the load so no single axle exceeds 20,000 lbs (steer) or 34,000 lbs (tandem).
Real‑world example – A typical 3‑axle tractor + 2‑axle flatbed (tandem) has a maximum legal gross weight of 80,000 lbs. Subtract your tractor weight (~17,000 lbs) and trailer weight (~13,000 lbs). That leaves ~50,000 l
bs for cargo if you’re perfectly balanced. But many 53‑footers are heavier—leaving only 45,000 lbs.
So a 48‑foot flatbed with a lightweight aluminum frame can legally haul more pounds than a heavy steel 53‑footer. Length doesn’t equal payload. Less trailer weight + good axle distribution = higher usable payload.
Here are three concrete ways to put more paying freight on your deck – without the headache of an overweight citation:
Weigh your empty trailer – Never trust the door sticker. Run across a scale with a full fuel tank, chains, and binders. That’s your true tare weight.
Slide your tandems – Most flatbed tandems can slide forward or backward. Moving them toward the rear increases drive axle weight; moving forward shifts weight to the tandems. Do a quick scale check after loading. Five minutes at a CAT scale can save you a $500 ticket.
Consider a spread axle trailer – Instead of a close‑coupled tandem (usually 49–60 inches apart), a spread axle spaces them 10+ feet apart. That allows significantly higher legal payload because the bridge formula gives you more allowable weight for longer axle spans. Downside: wider turning radius and more tire scrub.
A 48‑foot trailer can legally haul a 50‑foot pipe if you secure it properly. But overhang beyond the rear of the deck—anything past the last 4 feet—requires flags, lights, and in some states, an “overhang” permit. More than 10 feet behind the rearmost axle? Now you’re in “long load” territory with escort requirements.
The practical fix: plan your load so heavy items sit directly over or slightly forward of the axles. Overhanging light but long materials (PVC pipes, angle iron) is fine—just flag them and stay off interstates after dark if you don’t have proper lighting.
At 102 inches wide, your deck already uses every legal inch. If your cargo is 103 inches wide, you need “wide load” banners and possibly a pilot car depending on your state. For routine flatbedding, always measure your freight before you pull out. An extra 2 inches of steel plate can turn a simple run into a $1,000 permitting nightmare.
And remember: tie‑downs are not optional. Federal regulation (FMCSA 393.106) requires one tie‑down for every 10 feet of cargo, or one for the first 5 feet plus an additional for every 10 feet thereafter. With a 53‑footer, that’s at least 5 or 6 straps. Use them. The headache of a shifted load is not worth saving 90 seconds.
Don’t buy a 53‑foot trailer because “bigger is better.” If you haul dense products like steel coils, machinery, or concrete blocks, a lightweight 48‑foot step deck will carry more paying weight. If you haul lumber, drywall, or empty pallets, the 53‑footer’s extra length wins every time.
And if you’re buying used, check for rust around the crossmembers and a straight frame. A bent trailer won’t distribute weight evenly—and that means uneven scaling, uneven tire wear, and uneven profits.
Smart flatbedding isn’t about carrying the most—it’s about carrying the most legal weight without drama. Now that you know the dimensions, the bridge law, and the little tricks that turn a good load into a great one, you can roll past the weigh station with confidence.
Got a favorite flatbed hack or a dimension question? Drop it in the comments—let’s keep the load secure and the headaches small.
