Hauling immense payloads demands a highly specialized pneumatic network. Reliable deceleration dictates every operational protocol when transporting up to 80 tons of cargo. Standard stopping power simply fails under such extreme stress.
Heavy transport equipment requires a distinctively engineered stopping mechanism compared to standard utility haulers. We will break down exactly how these complex pneumatic mechanisms function. You will learn the technology driving them, the engineering behind multi-axle configurations, and the maintenance required to keep highways safe.
Air Brake Dominance: Commercial heavy-duty transport relies entirely on a dual-line pneumatic air system rather than standard electric setups.
Component Synergy: Safe stopping requires gladhands, air reservoirs, brake chambers, and slack adjusters to operate in perfect mechanical unison.
Axle Impact: Upgrading axle counts directly alters weight distribution, expands the friction surface area, and drastically slashes stopping distances.
Smart Technology: Modern fleets utilize advanced electronic modules to maintain steering control and prevent catastrophic jackknifing.
Preventative Maintenance: Routine inspections and precise stroke adjustments prevent brake fade and ensure regulatory compliance.
Imagine a rig descending a steep six percent grade. A fully loaded four axle flatbed trailer carrying industrial machinery holds a terrifying amount of kinetic energy. The combined Gross Combination Weight easily exceeds 100,000 pounds.
Kinetic energy scales exponentially with speed. Bringing this moving mass to a controlled halt requires generating massive friction. It also means dissipating extreme thermal loads. Standard electric brakes melt under this pressure. They cannot generate the clamping force needed. Complete brake fade would happen in minutes.
The logistics industry solves this engineering hurdle with the pneumatic air brake system. Compressed air flows continuously from the engine-driven compressor on the towing tractor. These setups feature an ingenious fail-safe. Heavy internal springs deploy the pads automatically if system pressure ever drops. A disconnected or compromised rig stops immediately.
Examining the individual parts reveals how pressurized air becomes mechanical friction. A standard flatbed semi trailer relies on an intricate network. These components must operate in perfect unison under extreme highway vibrations.
Interlocking metal gladhands secure the primary hoses between the tractor and trailer. The blue service line carries variable pressure from the foot pedal. This pneumatic signal dictates the exact braking force. Meanwhile, the red emergency supply line constantly fills the onboard tanks. It also holds back the emergency spring brakes. Disconnect this red line, and the heavy springs lock the wheels instantly.
Air takes valuable milliseconds to travel from the cab to the rear axles. To eliminate this dangerous lag, local steel or aluminum reservoirs sit directly beneath the trailer deck. This strategic placement keeps a high volume of pressurized air ready. Systems typically maintain between 100 and 120 psi. The air floods the wheel chambers the exact moment the operator demands it.
A cylindrical metal brake chamber sits at each wheel end. Inside, a heavy-duty rubber diaphragm pushes a steel rod. Compressed air forces this diaphragm forward. The rod extends with thousands of pounds of force. It connects directly to the slack adjuster. This lever converts linear motion into rotational motion. It also automatically adjusts the resting position to compensate for daily friction material wear.
The slack adjuster rotates a steel S-cam shaft. This rotation forces two curved, lined shoes apart. They violently press against the inside of the spinning cast-iron drum. The resulting friction arrests the wheel. Extreme heat generates instantly. The heavy metal drum absorbs and dissipates this thermal load to prevent structural failure.
Braking happens in a fraction of a second. Yet, it follows a highly precise sequence. Diagnosing pneumatic lag requires understanding this exact flow of air and force.
The operator depresses the treadle valve in the cab. A metered amount of air pressure travels through the blue service line. Pressing harder sends higher pressure toward the rear axles.
Service line air does not travel all the way to the wheel ends. That would cause severe braking delays. Instead, it acts as a signal to the relay valve. The relay valve instantly opens a gateway. Stored air from the local reservoirs rushes directly into the chambers.
Pressurized air enters all axle chambers simultaneously. The internal diaphragm surges forward. The extending pushrod actuates the slack adjuster, rotating the camshaft. The S-cam forces the shoes outward against the drum wall. Intense friction arrests the kinetic energy. The heavy freight comes to a safe, controlled stop.

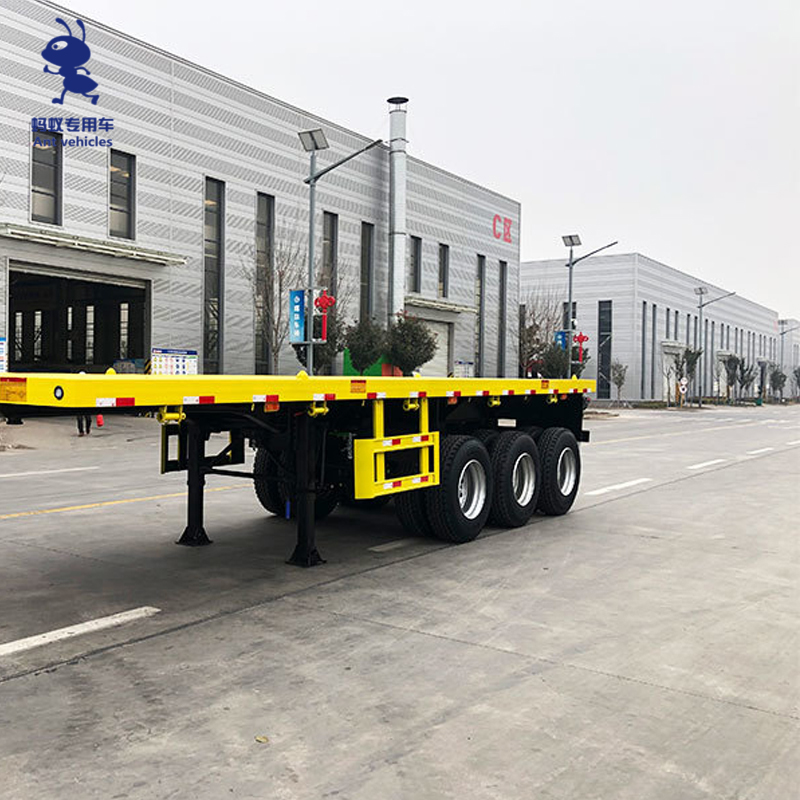

Evaluating heavy-duty transport equipment means understanding axle mechanics. Moving from a tri axle flatbed trailer to a quad-axle setup changes payload distribution and thermal management drastically.
Weight distribution dictates stopping efficiency. A three-axle configuration spreads payload weight across six wheel ends. This handles standard 60-ton loads perfectly. However, ultra-heavy machinery pushes these components to their thermal limits. Upgrading to a four-axle design spreads the gross weight over eight wheel ends. Downward mechanical strain drops per assembly. Less heat generates per wheel, which significantly extends friction material lifespan.
Stopping power correlates directly to the total swept area. A fourth axle adds two more chambers, drums, and shoe sets. This increased surface area slashes stopping distances. When carrying 80 tons, shorter stopping distances prevent catastrophic rear-end collisions.
Specification | Tri-Axle Configuration | Four-Axle Configuration |
|---|---|---|
Optimal Payload Capacity | Up to 60 Tons | Up to 80 Tons |
Total Wheel Ends | 6 | 8 |
Friction Surface Area | Standard Baseline | +33% Increased Area |
Thermal Dissipation | Moderate | High Efficiency |
Stopping Distance | Standard Compliance | Significantly Reduced |
The heavy-haul sector is moving fast toward predictive, sensor-driven braking. Fleet managers demand telematics integration to reduce downtime and prevent accidents. Regulatory bodies are pushing for tighter safety margins on mega-loads, forcing a shift away from purely mechanical setups.
Modern iterations of a flatbed semi trailer for freight feature smart brake chambers. Embedded stroke sensors monitor pushrod travel in real time. The system wirelessly transmits data to the dashboard. Manual pre-trip inspections are no longer the only line of defense. A failing slack adjuster triggers an immediate alert. This predictive maintenance eliminates undetected brake fade on steep mountain descents. It also slashes out-of-service violations at highway weigh stations.
Advanced electronic systems complement traditional pneumatics. They ensure absolute stability during adverse weather conditions and panic stops.
Panic stops on slick pavement can easily lock traditional air brakes. A locked wheel loses traction. The rig skids, risking a deadly jackknife. Wheel speed sensors detect rapid deceleration. The electronic control unit signals modulator valves to pulse the air pressure rapidly. This automated pulsing keeps the tires rolling just enough to maintain steering control.
While anti-lock systems react to skids, electronic braking prevents them proactively. Traditional hoses suffer from pneumatic lag. Electronic braking eliminates this delay. It transmits a digital signal simultaneously with the physical air pressure. The electronic unit instantly triggers the trailer modulator valves. Application synchronizes perfectly across all tractor and trailer axles. Dynamic load proportioning automatically adjusts stopping force based on the current payload weight.
Preventative maintenance prevents fatal highway failures. Scheduled annual inspections fall short for heavy hauling equipment. Operators must identify early physical and auditory warning signs before they escalate.
Delayed Braking Response: A distinct hesitation means air struggles to reach the chambers. Internal blockages, failing relay valves, or excessive moisture buildup restrict airflow.
Uneven Tire Wear: Tire tread patterns reveal hardware health. Locking shoes create flat spots on specific tires. Conversely, a seized slack adjuster causes continuous dragging. This friction accelerates uneven cupping on the tread.
Pulling to One Side: Asymmetric torque causes the rig to pull aggressively sideways during hard stops. Components on one side engage harder or faster than the other. Uncalibrated slack adjusters or glazed linings typically cause this imbalance.
Continuous Air Leaks: A brief air burst is normal when releasing the brakes. A continuous hissing sound under pressure indicates an active leak. Chafed rubber hoses, compromised gladhand seals, or ruptured chamber diaphragms deplete the air supply. The compressor overworks to compensate, risking total system failure.
Pneumatic reliability depends on rigorous daily maintenance. Extreme friction, road salt, and debris constantly attack undercarriage components.
Effective strategies start with daily pre-trip inspections. Drivers must manually check gladhand rubber grommets for tears. Draining air reservoirs daily is equally critical. Compressed air generates condensation. Accumulated water consumes valuable tank volume and corrodes internal valves.
Slack adjusters demand routine lubrication. Greasing prevents the internal worm gear from binding under extreme thermal stress. Seized internal gears cannot compensate for shoe wear. This results in a dangerously long pushrod stroke.
Winterizing the system keeps operations safe in freezing temperatures. Leftover moisture freezes, creating ice blockages. Air cannot reach the chambers. Fleets must replace tractor air dryer cartridges before winter. Approved air line antifreeze keeps pneumatic pathways clear in extreme sub-zero conditions.
Unlike light-duty utility haulers, a commercial rig operates on a standardized dual-line air system. You do not need an aftermarket electric plug-in controller. The towing tractor must feature an engine-driven compressor, reservoirs, and proper pneumatic dashboard controls to operate the mechanics safely.
The Gross Axle Weight Rating determines safe stopping capacity. Standard commercial heavy-duty axles rate between 20,000 to 25,000 pounds each. A well-maintained four-axle pneumatic setup is mathematically engineered to safely halt Gross Vehicle Weights frequently exceeding 80,000 to 100,000 pounds. This makes it the industry standard for specialized machinery transport.
Lifting an axle is highly recommended when unladen. Many multi-axle configurations feature a pneumatic lift mechanism on the foremost or rearmost axle. Raising the tires off the pavement eliminates unnecessary rolling resistance. It significantly reduces premature tread wear and prevents unnecessary mechanical friction on drums and shoes.
A brief, loud burst of air is normal when applying parking brakes. The system exhausts service air to allow heavy mechanical springs to expand. A quiet, continuous hissing sound indicates an active leak in hoses, gladhands, or valves. Continuous leaks compromise system pressure. A certified mechanic must repair them immediately to prevent emergency spring deployment during transit.
Lifespan depends heavily on operational terrain and payload weight. Standard friction linings on a flatbed hauling maximum capacity might last 40,000 to 60,000 miles. Frequent mountainous descents accelerate wear significantly. Regular stroke adjustments and proper electronic calibration extend lining life by preventing dragging.
Federal regulations mandate strict performance standards for commercial vehicles. A heavy tractor-trailer combination traveling at 60 mph must come to a complete stop within 310 feet. Upgrading to a four-axle setup with advanced anti-lock systems ensures compliance and provides a wider safety margin under full 80-ton load conditions.
Choosing the right equipment determines your fleet's safety and profitability. Whether you are transporting construction materials or ultra-heavy industrial machinery, reliable stopping power is non-negotiable. Evaluate your payload requirements and terrain to select the optimal axle configuration. For specialized transport solutions engineered to handle up to 80 tons with advanced pneumatic safety systems, explore the premium lineup at ANT Vehicles. Upgrade your fleet with equipment designed for maximum durability and highway compliance.
