Product Description

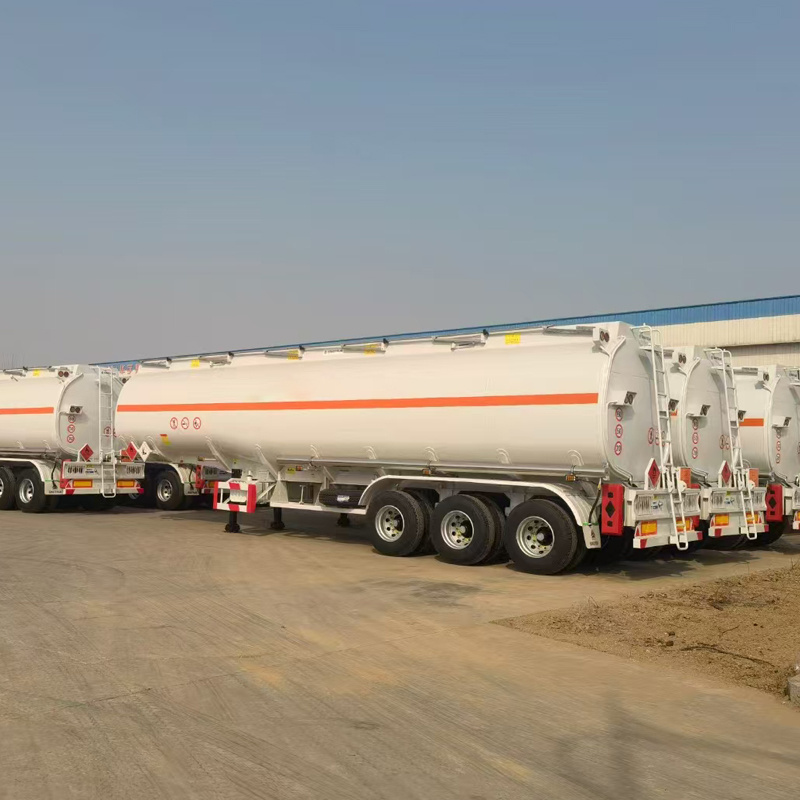

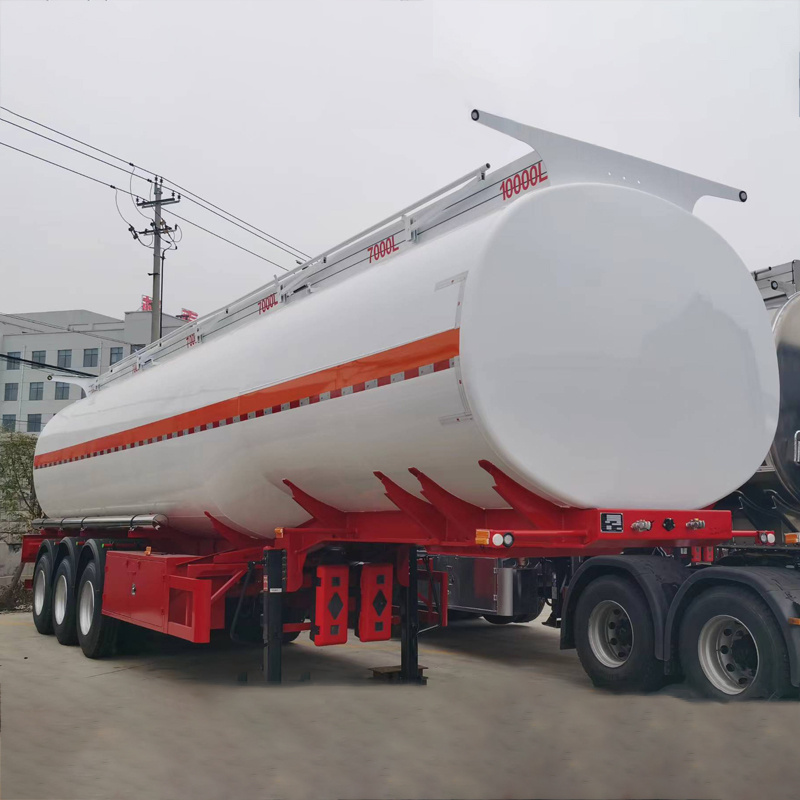

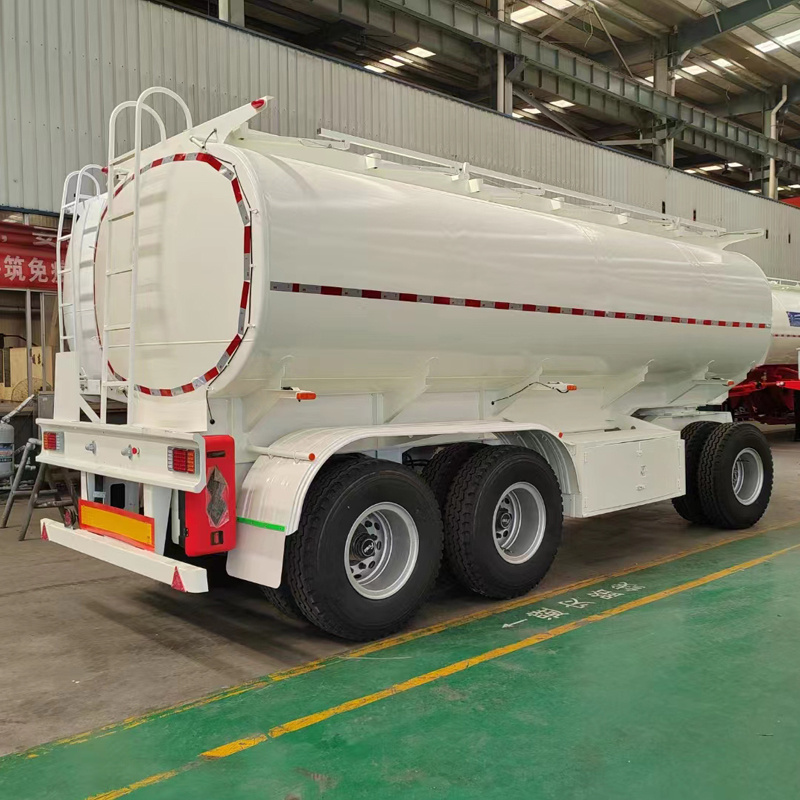

Our Stainless Semi Trailer Tanker is built for superior performance and longevity. Crafted from high-grade stainless steel, it ensures easy cleaning, corrosion resistance, and higher recyclability, making it a cost-effective long-term investment.
Specification
Shape: Round or square
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 55000 Liters
Tank Body Material: 5mm or 6mm/ stainless steel
End plate: 5mm or 6mm/ stainless steel
Manhole Cover: stainless steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Advantage
1. High Efficiency & Large Capacity
Our stainless steel tanker trailers feature a high-capacity design (up to 90,000 liters), enabling more liquid transport per trip. This reduces delivery frequency, cuts costs, and maximizes productivity.
2. Superior Safety & Leak-Proof Design
Built with high-strength stainless steel and advanced anti-leak, anti-explosion technology, our tankers ensure safe, spill-free transport—even for hazardous chemicals or food-grade liquids.
3. Enhanced Stability & Durability
Robust BPW German axles & air suspension for smooth, low-maintenance operation.
Low center of gravity & reinforced chassis for superior stability on challenging roads.
4. Wide Material & Application Flexibility
Available in stainless steel, carbon steel, or aluminum to suit different needs. Ideal for fuel, chemicals, food liquids, and more.
5. Easy Operation & Low Maintenance
User-friendly design simplifies handling, while stainless steel’s rust-resistant properties ensure longevity and easy cleaning.
