Product Description

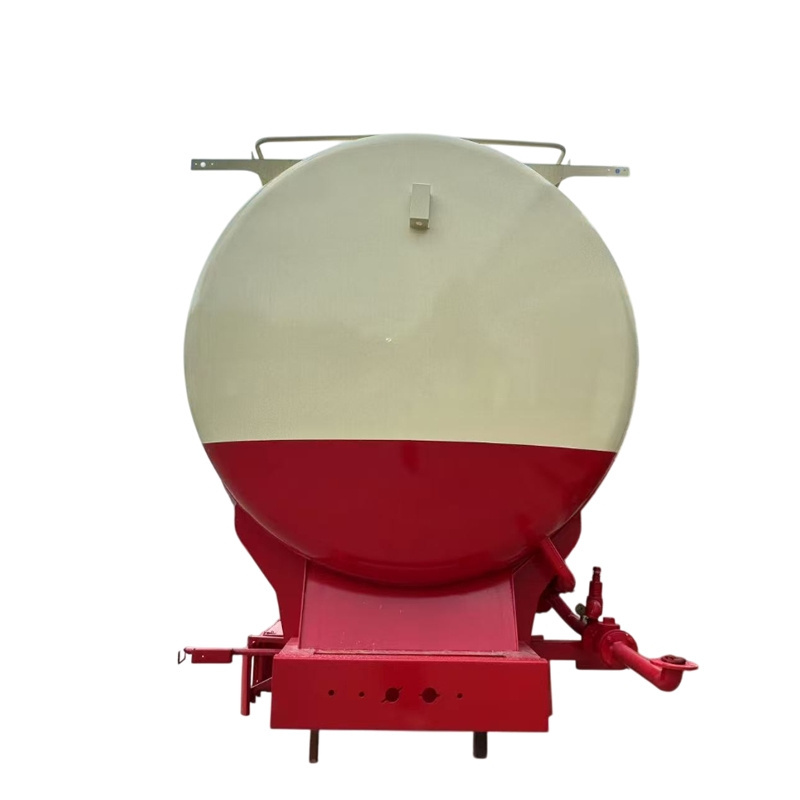

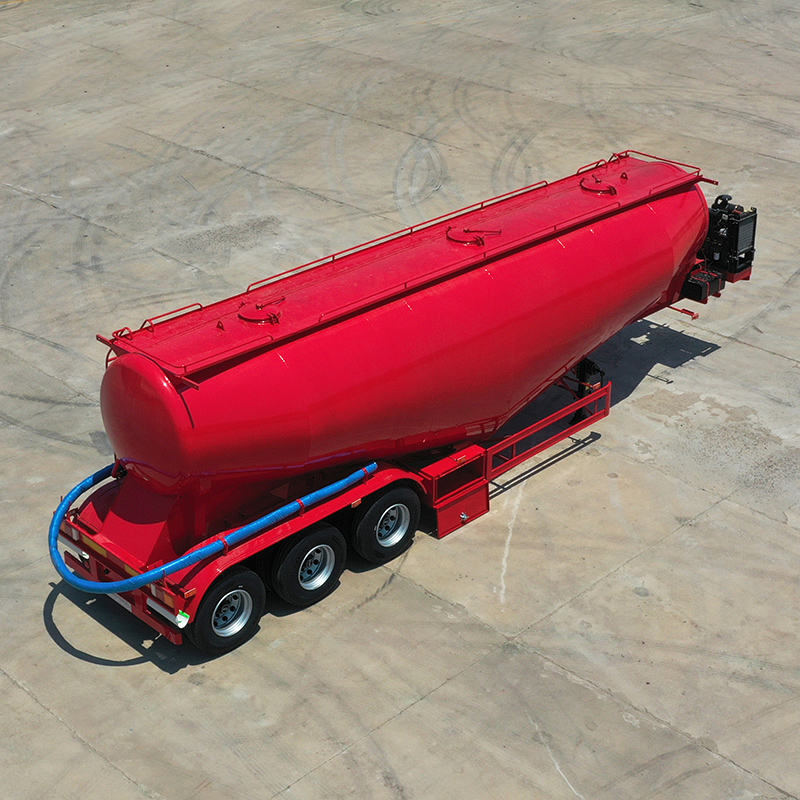

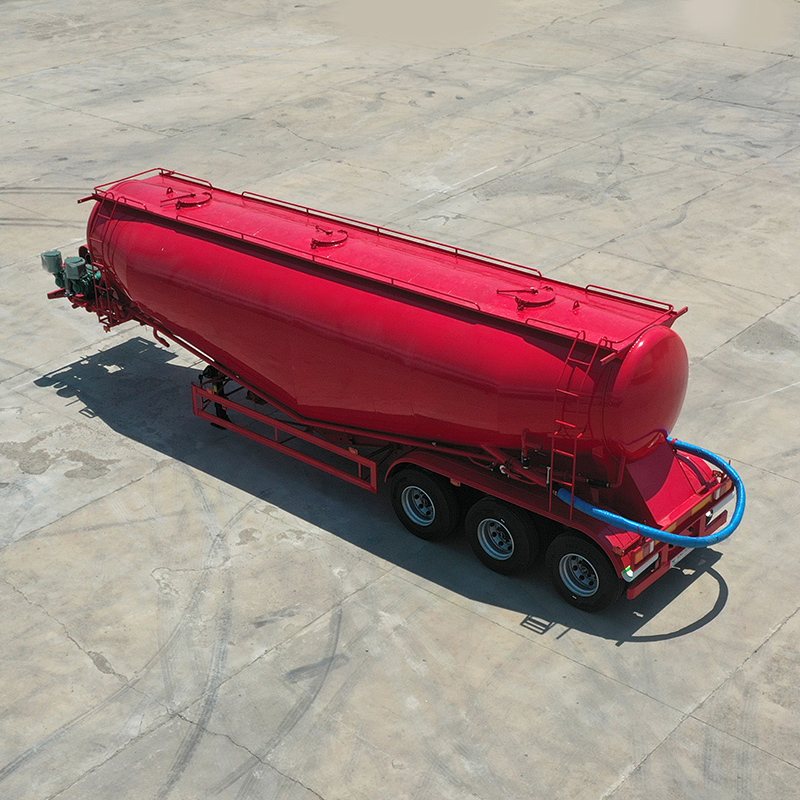

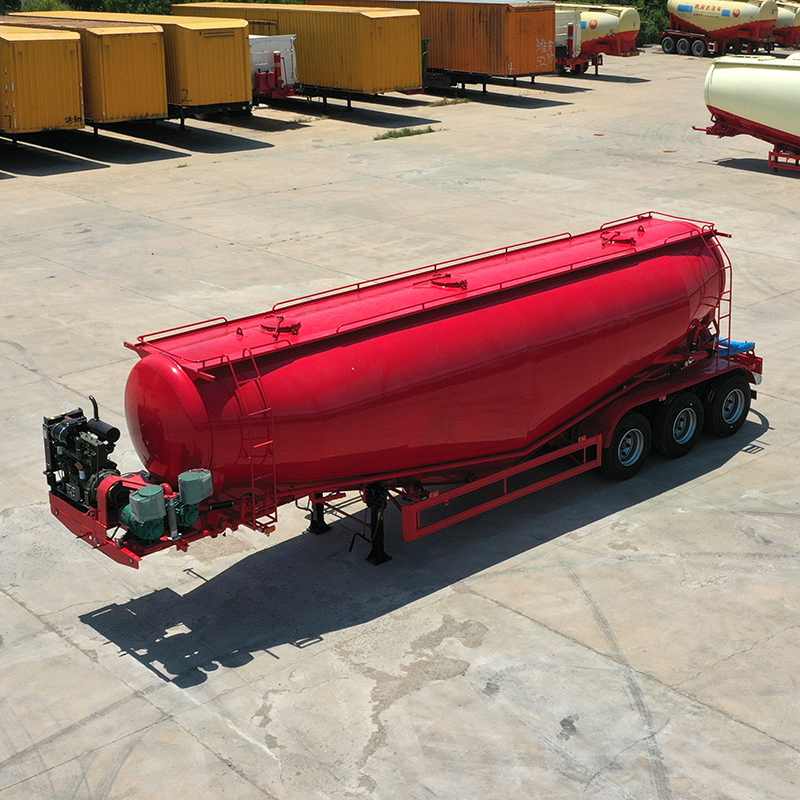

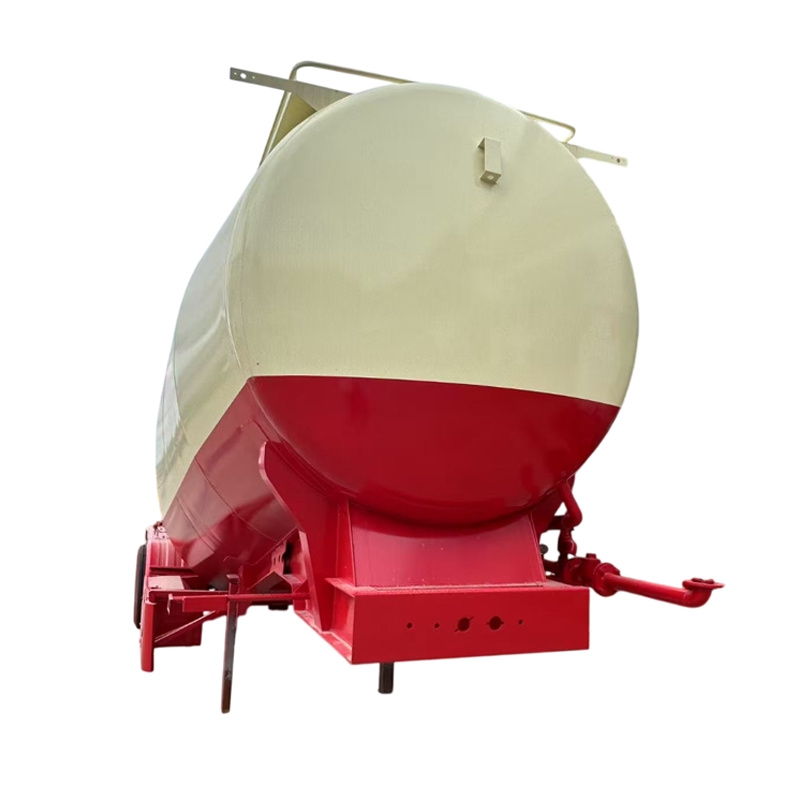

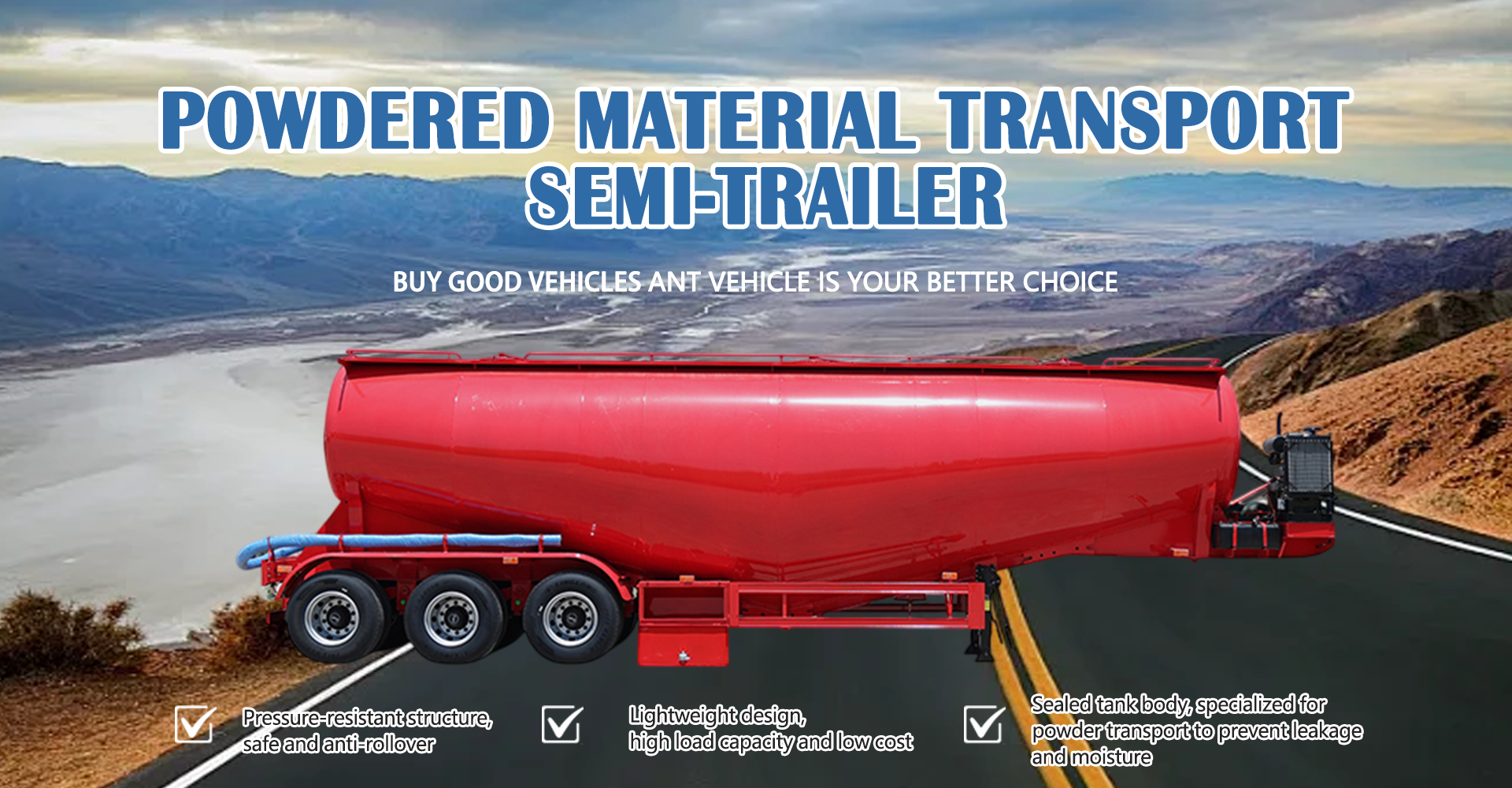

Our 3 Axle Cement Tanker Trailer is designed for safe, high-capacity transport of bulk cement, flour, powder, alumina, and other dry materials. Featuring a robust steel construction and advanced sealing technology, it ensures minimal material loss and dust-free operation.
Specification
Dimension | 11700mm*2490mm*3990mm ( Exact size depends on the final design) | Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Tare weight | About 6000KGS-10000KGS | Discharging Valve | Diameter is 3 or 4 inch |
Total Volume | 25m³-60 m³ | Discharging Pipe | 4" rubber hose, 2 pcs, 6m/each |
Tanker Body Material | Q235 carbon steel /aluminum /stainless steel | Axle | 3 or 4 axles |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, 500mm | Landing Gear | JOST (D200T)or CHINA BRAND 28T |
Suspension | Mechanical suspension /air suspension | Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks. | Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional | Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

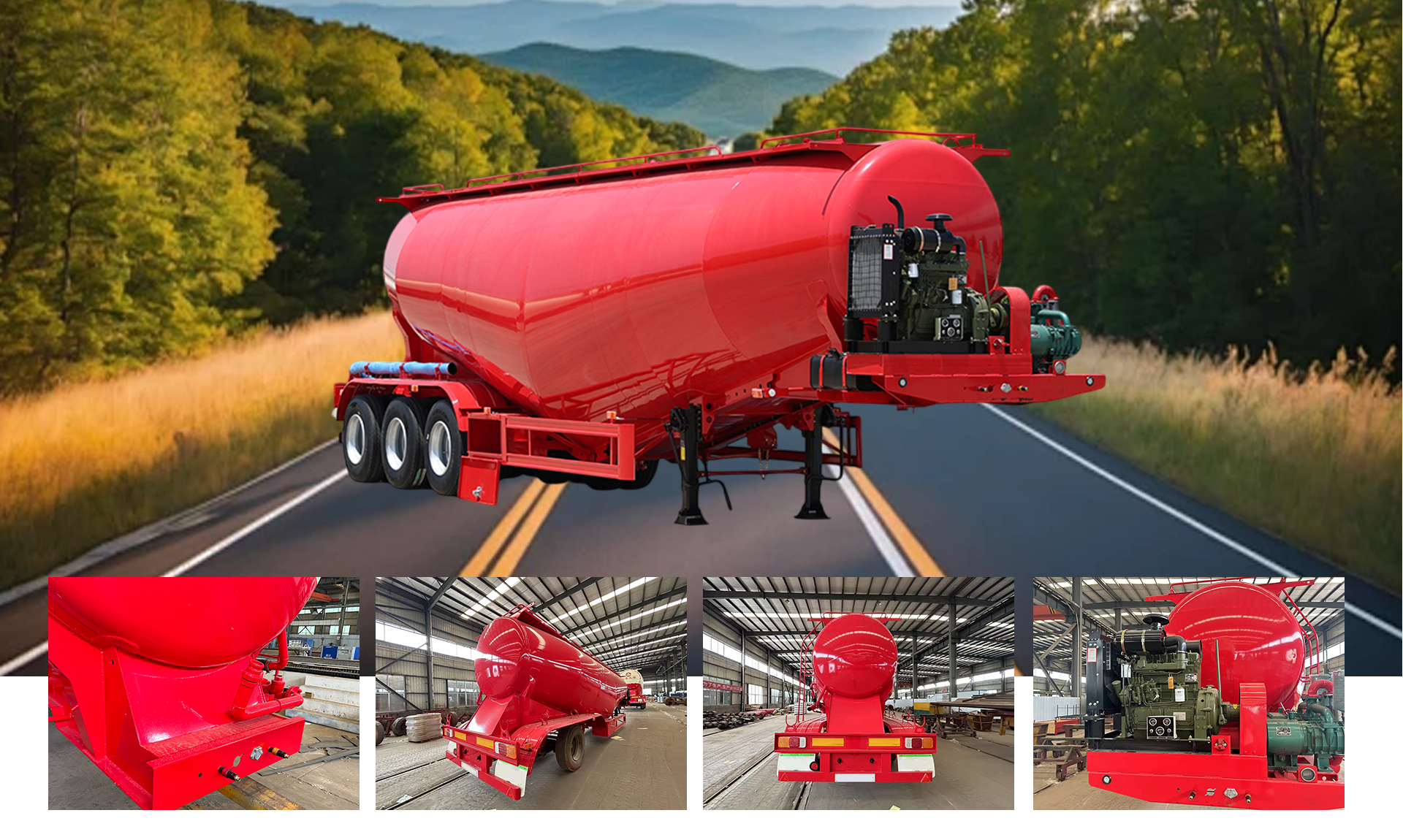

Product Advantage
✔ Superior Strength & Wear Resistance – Constructed with high-strength steel for maximum durability, ideal for challenging road conditions.
✔ Precision Welding & Quality Craftsmanship – Advanced manufacturing ensures seamless welds, extended service life, and a smooth, corrosion-resistant tank body.
✔ Rigorous Quality Testing – Every trailer undergoes pressure tests and metal inspections to guarantee leak-proof sealing and long-term reliability.
✔ Faster Unloading with Enhanced Airflow – Equipped with 10 air bags (vs. standard 6-8) for higher pressure efficiency, ensuring rapid discharge at 1.6 tons per minute.
✔ Powerful Engine Support – Premium diesel-engine-powered air compressor delivers consistent performance for smooth, high-speed operations.
