Hauling industrial metal tests the absolute limits of heavy-duty transport. It remains one of the most demanding and high-risk freight categories in the logistics sector. When a driver pulls into a steel mill to load a 45,000-pound master coil or an 80-foot structural I-beam, standard enclosed dry vans are immediately ruled out. Enclosed trailers simply cannot accommodate the dense nature of this cargo. They also block the overhead crane access required for loading.

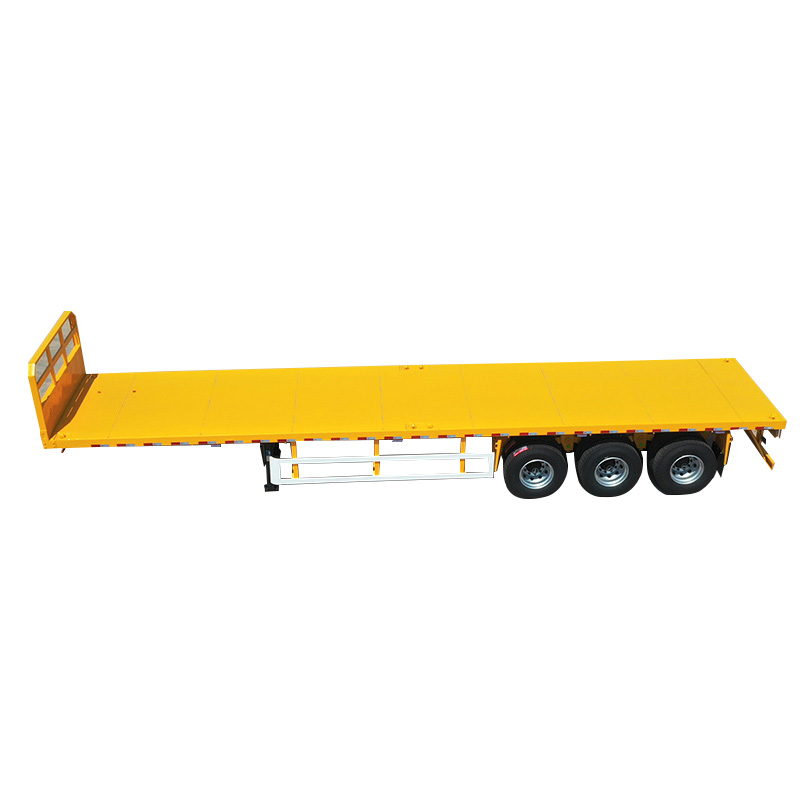

This is exactly why the open-deck architecture of a flatbed semi trailer serves as the undisputed workhorse for metal logistics. Carrying raw metal requires far more than strapping a heavy object to a wooden deck. It demands a rigorous understanding of physics and precise weight distribution. Fleet operators must utilize advanced securement techniques and highly specialized equipment engineered to prevent catastrophic structural failure on the highway.
This engineering guide breaks down the mechanics behind hauling concentrated loads. It outlines the strict safety protocols required to keep drivers and the public safe. You will also learn how to evaluate the right heavy-duty equipment for your fleet to ensure long-term profitability.
Weight Distribution is Critical: The extreme density of metal requires precise placement over the frame and axles. This prevents main beam deflection or blown tires during transit.
Specialized Equipment Matters: Standard open-deck trailers are rarely sufficient. Concentrated loads demand reinforced main beams and factory-installed coil packages to maintain structural integrity.
Axle Configurations Increase Payload: Utilizing multi-axle setups allows fleet operators to legally transport heavier payloads while strictly adhering to federal bridge laws.
Strict Securement Protocols: Hauling these materials requires heavy-duty Grade 70 chains, forged binders, and engineered edge protectors.
Purchasing Considerations: Investing in the right equipment involves a thorough evaluation of high-tensile steel frames, suspension types, and custom securement additions.
In the heavy freight industry, unrestricted access is mandatory. Unlike palletized consumer goods loaded via dock-level forklifts, industrial metal components require massive overhead gantry cranes or specialized heavy-duty lift trucks. The absence of walls and a roof allows crane operators to lower multi-ton components directly onto the mathematical center of the deck. Consequently, this ensures a precise center-of-gravity placement that would be physically impossible within an enclosed space.
Not all metal cargo behaves the same way during transit. Fleet managers and drivers must understand the distinct physical properties of different products to manage the unique hazards they present.
Steel Coils: These represent the absolute peak of hauling difficulty. A single master coil can weigh between 30,000 and 60,000 pounds, yet it only occupies a footprint of about four to five feet. This creates a microscopic zone of extreme downward pressure that severely tests the floor limits.
I-Beams and Structural Steel: Used heavily in infrastructure projects, these pieces feature awkward and extended dimensions. Transporting them often involves managing significant front or rear overhang. This requires precise center-of-gravity calculations and oversized load flagging.
Steel Plates: Large flat plates present a severe friction hazard. Their smooth and often oiled surfaces lack grip. This makes them highly susceptible to lateral or forward sliding during hard braking or sharp turns.
Pipes and Tubes: Cylindrical freight is inherently unstable. Without engineered chocking systems and belly straps, pipes are prone to rolling. A rolling pipe can instantly destabilize the vehicle and trigger a rollover event.
Recent shifts in the heavy-haul sector reveal a growing demand for specialized transport solutions. The ongoing surge in global infrastructure projects has dramatically increased the need for structural beams, bridge girders, and raw construction materials. Industry analysts note that fleets are rapidly transitioning away from older conventional trailers.
Instead, operators are investing in high-tensile steel frames manufactured from Q345 or T700 grade steel. This trend is driven by stricter Department of Transportation weight enforcement. Fleet managers face constant pressure to maximize payload profitability per trip without sacrificing structural integrity. Lightweight yet ultra-strong materials allow carriers to shed unladen tare weight, directly increasing the legal volume of steel they can haul.
Understanding the physics of weight distribution marks the dividing line between a successful delivery and a collapsed trailer. There is a vast engineering difference between 45,000 pounds of palletized consumer goods and a 45,000-pound master coil. Palletized goods distribute their weight evenly across the entire 53-foot deck. In sharp contrast, a coil concentrates that exact same tonnage into an incredibly small area. This localized downward kinetic force can easily snap standard cross-members or permanently warp main beams.
To combat this intense pressure, specialized trailers utilize distinct structural reinforcements. The foundation relies on two massive longitudinal main beams built with a slight upward bow manufactured directly into the metal. Engineers call this positive camber. When a massive load sits in the center, this positive camber flattens out. The deck then rides level rather than sagging dangerously in the middle.
For fleets that frequently haul coils, a standard frame will eventually fail under metal fatigue. These operations require a factory-installed structural enhancement known as a coil package. This upgrade features extra cross-members welded between the main beams, specifically clustered in the center section of the trailer. Standard cross-members might be spaced 12 to 15 inches apart. A coil package reduces this spacing to as little as 4 inches. This creates an unyielding reinforced cradle capable of supporting extreme localized tonnage.
Federal and local bridge laws strictly regulate how much weight a single axle group can support. These laws exist to protect highway infrastructure from crumbling. Even if a frame can physically support a 60,000-pound load, standard tandem axles cannot legally or safely bear that weight on the asphalt.
Specifically, advanced axle configurations become necessary for heavy hauls. For example, utilizing an 80-ton capacity four axle flatbed trailer allows carriers to distribute the massive payload over a significantly larger surface area. Adding a third or fourth axle spreads the downward kinetic force. This engineering approach allows haulers to legally transport heavier freight without exceeding tandem limits, maximizing per-trip profitability while maintaining strict compliance.
When securing raw metal, synthetic nylon straps are generally insufficient and incredibly dangerous. Machined metal edges can easily slice through synthetic webbing under the tension of highway vibrations. Industry standards dictate the exclusive use of heavy-duty transport chains. Drivers rely on Grade 70 or Grade 80 chains paired with forged ratchet binders. Chains offer a vastly superior Working Load Limit and resist the abrasive friction caused by heavy metal shifting.
Federal regulators enforce strict protocols for coil securement. Depending on the orientation of the freight, drivers must employ specific chaining geometries to prevent movement in all directions.
Suicide Method: The coil is loaded with its hollow center facing side-to-side. It is called suicide because if the chains fail, the coil naturally rolls forward into the driver cab during a sudden stop. Despite the ominous name, engineers prefer this method. It is easiest to chain through the eye and provides the absolute best defense against lateral rolling, which is the primary cause of truck rollovers.
Shotgun Method: The coil is loaded with the eye facing front-to-back. If the securement fails, it rolls off the side of the deck. This orientation requires complex horseshoe chain configurations to prevent forward movement.
Eye-to-the-Sky: The coil sits flat on its side, usually resting on a heavy-duty wooden skid. This completely eliminates the risk of rolling. However, it requires substantial downward pressure and rubber friction mats to prevent the entire skid from sliding across the floor.
Structural beams and smooth plates require entirely different securement physics. Because plates are prone to slipping, drivers must use rough-sawn hardwood blocks placed directly between the deck and the cargo. Wood creates a high-friction barrier that prevents metal-on-metal sliding. Furthermore, edge protectors are mandatory. They protect the chains from bending over sharp 90-degree corners, which severely weakens the chain links. For pipes, drivers utilize belly wraps. The chain loops completely around the cylindrical freight before attaching to the rub rail, effectively choking the pipes together to stop independent rolling.
Evaluating equipment for a fleet requires a calculated approach to Total Cost of Ownership and operational capacity. Fleet managers must select the right materials and specifications to ensure their investment withstands the brutal rigors of the industry.
To simplify the procurement process, fleet managers should reference the following technical specifications when selecting trailers for metal transport.
Trailer Configuration | Best Suited For | Typical Payload Capacity | Key Engineering Feature |
|---|---|---|---|
Standard Tandem Axle | Palletized goods, light pipes | Up to 40 Tons | Standard cross-member spacing |
Tri-Axle Heavy Duty | Master coils, structural beams | 60 Tons | Q345/T700 steel, Coil Package |
4-Axle High Capacity | Extreme heavy haul, industrial plates | 80 Tons | Lift axles, reinforced main beams |
Investing in a heavy duty flatbed trailer equipped with a factory-installed coil package provides the best balance of durability and revenue-generating payload capacity. Models featuring a 60-ton capacity and high-strength Q345 steel ensure the frame resists twisting under localized stress.
Protecting both the frame welds and the cargo requires a robust suspension system. Mechanical spring suspensions are cheap to maintain, but they transfer violent road shock directly into the rigid freight. Air ride suspension is overwhelmingly preferred by seasoned engineers. Air bags absorb high-frequency road vibrations, reducing the kinetic energy that causes heavy loads to bounce or shift. Air ride systems also include dump valves, allowing the driver to exhaust the air and lower the deck height for safer crane loading.
Safety in this sector relies on strict mathematical formulas enforced by transportation authorities. The core rule of cargo securement states that the aggregate Working Load Limit of all tie-downs must equal at least 50% of the cargo weight. For instance, if a load weighs 46,000 pounds, the combined limit of the chains securing it must be no less than 23,000 pounds. Fleet operators must ensure drivers are trained to read the manufacturer tags on chains and binders. The weakest component in the entire assembly always dictates the official rating.
A standard visual walk-around is woefully insufficient for heavy haulers. Drivers must meticulously inspect the frame for micro-cracks. They must pay special attention to the welds on the cross-members and the suspension hangers where stress naturally concentrates. Multi-axle setups require careful monitoring of tire pressure and brake pad wear, as immense weight dramatically increases stopping distances. Chains must be inspected daily for stretched links, deep gouges, or bent hooks.
The first step in procurement is analyzing your operational data. Are you hauling localized heavy coils every day, or is your fleet mixing routes with general freight? If your operation is dedicated to dense metal, investing in a heavy-duty model with a robust coil package is the only logical choice.
When evaluating a flatbed semi trailer for freight, fleet managers must look beyond the initial purchase price. Calculating long-term operational expenses is vital. While a multi-axle heavy-duty unit commands a higher initial premium, its ability to legally haul heavier and more lucrative loads yields a much faster return on investment.
Efficiency in securement directly translates to increased operational uptime. Buyers should prioritize factory-installed securement add-ons. Recessed chain tie-downs built directly into the floor handle massive tension ratings. They are crucial for securing coils using the suicide or shotgun methods without damaging the outer side rails.
Hauling industrial metal demands uncompromising knowledge of physics, safety regulations, and specialized equipment. The safety of the driver and the motoring public relies entirely on pairing proper securement techniques with a structurally sound and well-maintained trailer.
Fleet operators must continuously evaluate their equipment to prevent tragic accidents, costly fines, and catastrophic structural failures. By upgrading your fleet with high-capacity, multi-axle configurations and reinforced frames, you can handle the toughest freight demands. For fleets looking to maximize payload and safety, selecting purpose-built trailers from trusted manufacturers like ANT Vehicles ensures long-term operational success.
A standard tandem-axle trailer typically carries up to 48,000 pounds of freight legally. However, heavy-duty trailers equipped with multiple axles can carry payloads upwards of 60,000 to 80,000 pounds. The exact maximum capacity depends heavily on the trailer structural rating, the tractor hauling capacity, and local bridge laws regarding per-axle weight distribution.
Yes, it is highly recommended and required by strict fleet safety policies. A coil package consists of extra, closely spaced cross-members reinforced directly in the center of the frame. Because a master coil concentrates tens of thousands of pounds into a footprint of just a few feet, standard frames will easily bend, warp, or suffer catastrophic failure without this specific reinforcement.
Payload capacity is calculated by taking the maximum Gross Vehicle Weight Rating allowed by local laws and subtracting the unladen tare weight of both the tractor and the trailer. Using lightweight high-tensile steel frames reduces the tare weight, directly increasing the amount of steel you can legally load onto the deck.
A standard flatbed uses traditional steel and wider cross-member spacing, suitable for evenly distributed goods. A heavy-duty flatbed for steel utilizes high-yield steel like Q345 or T700, features reinforced main beams with a higher camber, includes a factory coil package, and often utilizes three or four axles to handle extreme localized stress.
The exact number depends on the total weight of the cargo and the Working Load Limit of the specific chains. Regulations mandate that the total limit of all securement devices must equal at least 50% of the cargo weight. Furthermore, specific geometric rules apply for tying chains through the eye of the coil to prevent forward, backward, and lateral movement. A heavy load typically requires a minimum of four to six heavy-duty Grade 70 transport chains.
