Securing high-value vehicles during transit requires more than heavy-duty straps. It relies entirely on the structural engineering of the car carrier trailer deck layout. Modern transport operations demand precise anchor placements. You need reliable foundations to hold extreme dynamic forces securely. Inadequate anchor spacing or mismatched hardware causes severe operational failures. Structurally weak deck mounts lead directly to dangerous strap chafing. They cause dynamic load shifting during abrupt maneuvers. These oversights trigger DOT compliance violations at weigh stations. They also result in costly freight damage claims. Fleet managers and owner-operators frequently evaluate new equipment. This guide breaks down how you assess deck materials accurately. You will learn ideal tie-down point configurations. We explore critical hardware specifications in granular detail. Our goal helps you ensure safe, scalable, and compliant vehicle transport. You can confidently evaluate any new Car Carrier Semi Trailer build sheet.
A compliant car carrier trailer deck layout must align tie-down anchor points with the structural cross-members, not just the surface decking material.
Welded D-Rings offer maximum Working Load Limits (WLL) for heavy equipment, while continuous E-Track or L-Track systems provide the micro-adjustability required for low-clearance and varied-wheelbase vehicles.
Multi-vehicle setups, such as a 6 car hauler trailer, require overlapping tie-down zones and strategic anchor angles to prevent strap interference across articulation points.
Evaluating trailer manufacturers requires strict attention to hardware WLL certifications, weld penetration on anchor points, and DOT-compliant load securement ratings.
Predictable, well-spaced tie-down points reduce loading times immensely. They cut down securement durations for every single vehicle. This efficiency directly impacts daily operational profitability. Drivers spend less time adjusting complicated straps. They complete more hauls during their regular shift. A strategic layout optimizes your load cycle efficiency. You avoid frustrating bottlenecks at busy auction lots. Operators secure vehicles rapidly and move to the next pickup.
Properly engineered tie-down angles prevent suspension compression issues. They keep tensioned straps away from fragile vehicle fascias. This eliminates the primary causes of expensive transit damage claims. Risk mitigation depends heavily on precise anchor placement. You protect expensive cargo from transit friction effectively. Common mistakes include routing straps over sharp chassis components. We recommend dedicated anchor zones for varying vehicle lengths. You eliminate guesswork for your transport drivers entirely.
DOT and FMCSA regulations mandate specific aggregate Working Load Limits (WLL). You must follow these strict federal standards closely. An optimized layout ensures total capacity compliance effortlessly. The sum of your tie-down working load limits must equal at least 50% of cargo weight. Inspectors look for securement integrity during routine roadside checks. We highly recommend verifying these limits regularly. Non-compliant anchor points result in immediate out-of-service orders. They force you to abandon lucrative hauling contracts temporarily.
Steel punched decks provide excellent integrated traction. They offer continuous hook points for diverse vehicle loads. You must evaluate the base gauge thickness carefully. Check rust-prevention coatings like galvanized or powder coat finishes. Steel handles brutal transit conditions exceptionally well. It resists deformation under heavy equipment tires. However, bare steel rusts quickly in damp climates. You should prioritize hot-dipped galvanized finishes over standard paint.
Extruded aluminum offers massive weight savings for operators. It allows for substantially higher payload capacities. However, it requires specialized track inserts for securement. You must reinforce cross-member integration aggressively. This prevents sudden anchor tear-out under heavy dynamic loads. Aluminum yields excellent performance when manufacturers reinforce it properly. Best practices suggest inspecting aluminum welds monthly. You catch hairline fractures before they become catastrophic failures.
Wood decking requires special handling during the manufacturing process. You cannot simply lag-screw anchors into raw timber. Wood lacks the sheer strength for vehicle securement. Assess manufacturers for proper through-bolting techniques rigorously. They must use heavy-duty steel backing plates underneath. Some builders use custom fasteners engineered for steel frame anchoring. These fasteners sit securely directly between deck boards. We consider through-bolting a non-negotiable safety standard.
Deck Material | Primary Advantage | Structural Anchor Requirement |
|---|---|---|
Steel Punched (Pooched) | High durability and integrated traction | Direct welding to cross-members; check gauge thickness. |
Extruded Aluminum | Significant weight savings for payload | Reinforced track inserts; strictly avoid surface-only mounting. |
Treated Wood | Economical and easy to replace | Steel backing plates underneath; mandatory through-bolting. |
Welded D-Rings handle heavy-duty static loads perfectly. They work best for fixed-wheelbase transport and heavy equipment. You must evaluate their installation method meticulously. Manufacturers must weld them directly to the main frame. Heavy-duty cross-members provide necessary structural support. Check for minimum 5,000 to 10,000 lb WLL ratings per ring. Common mistakes include accepting D-rings welded only to sheet metal. They tear out instantly during emergency braking scenarios.
Continuous tracking systems offer high versatility for fleet operators. E-Track and L-Track systems fit mixed-freight haulers perfectly. They handle vehicles featuring vastly different wheelbases. Recessed installation prevents expensive tire damage during loading. Tracks must fasten to structural steel at regular intervals. This mounting strategy maintains their aggregate WLL effectively. Surface-mounted tracks often crush low-profile tires. We advise demanding fully recessed track installations exclusively.
Layouts must accommodate over-the-tire strap configurations properly. These straps allow vehicle suspensions to ride naturally. You must provide parallel anchor points consistently. Place them directly ahead of and behind the wheel tracks. Chassis tie-downs serve different internal suspension setups. We advise offering both hardware options on your deck. You gain maximum versatility for unpredictable freight contracts. Drivers can adapt to unusual vehicle undercarriages instantly.
Static Heavy Hauls: Rely on 10,000 lb WLL D-Rings welded to the frame.
Mixed Fleet Hauls: Utilize recessed E-Track for micro-adjustments.
Low Profile Tires: Ensure all tracks sit perfectly flush.
Suspension Care: Prioritize over-the-tire strap anchors.
Independent anchor points must secure all four vehicle corners. We call this the 4-Point Minimum Rule. It prevents dangerous lateral shifting during highway transit. Here are the crucial steps for proper securement:
Identify independent anchor points for each vehicle corner.
Position straps parallel to the vehicle chassis rails.
Avoid crisscrossing straps beneath low-hanging exhaust systems.
Verify uniform strap tension across all four attachment locations.
Sports cars and exotics present severe low-clearance challenges. Tie-down points must sit far away from the tires. This distance creates a very low strap angle. Keep the securement angle under 15 degrees always. Steep angles on short anchors crush fragile front splitters. They destroy expensive lower valances when you apply ratchet tension. You face massive damage claims if straps touch painted plastics.
Anchors should cluster securely in 12-inch to 24-inch intervals. Place them precisely within the primary wheel zones. This spacing accommodates compact cars and long-bed trucks equally. You ensure versatile loading options for diverse commercial fleets. A common mistake involves placing anchors symmetrically but too far apart. You end up struggling to secure standard sedans safely. Clustered intervals provide the exact flexibility operators need daily.

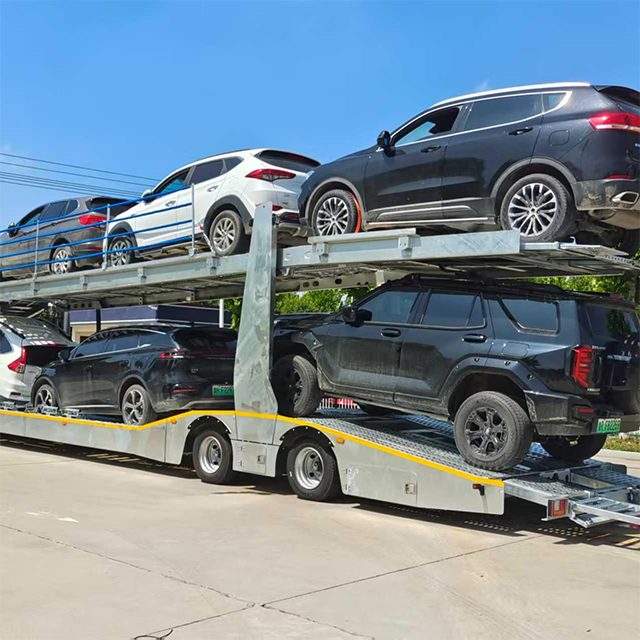

A 6 Car Hauler Trailer requires highly dense anchor configurations. You must establish overlapping securement zones carefully. Tie-down points serve dual purposes depending on your loading sequence. They function as front anchors for one loaded vehicle. They also act as rear anchors for another vehicle simultaneously. You cannot waste deck space on single-purpose mounting rings. Strategic density maximizes your total vehicle capacity.
Complex articulating decks demand strict attention during design. You often see these mechanisms on a large Semi Trailer. Hydraulic lift decks shift angles during transit preparation. Tie-down points must locate strictly within moving deck sections. Strapping across articulation joints causes catastrophic strap failure. Hinges shear securement lines when hydraulic adjustments occur post-securement. We consider crossing articulation joints a severe safety violation.
Operators must access ratchets safely under full load conditions. You need tension controls positioned near the trailer side. Center-deck anchors present severe safety hazards for drivers. Crawling under a loaded vehicle creates unacceptable ergonomic risks. Keep all securement operations safely accessible from the perimeter. Best practices dictate keeping all ratchet mechanisms within arm's reach. You protect your drivers from crushing injuries effectively.
You must inspect weld penetration on custom D-rings thoroughly. Poorly fused tie-downs represent a leading failure point. Demand certified WLL documentation for all proprietary anchor systems. Manufacturers should provide these engineering certifications willingly. Reject any builder refusing to supply load test data. Visual inspections often reveal porous or incomplete welds. We recommend hiring third-party inspectors for large fleet orders.
Ensure your manufacturer uses graded hardware consistently throughout the build. Track systems require Grade 8 bolts for maximum safety. Avoid standard commercial-grade fasteners entirely. Hardware sourcing impacts overall deck integrity heavily. Cheap bolts shear off during sudden highway deceleration. You must mandate high-tensile steel fasteners in your purchase agreement. It prevents catastrophic load detachment under extreme stress.
Shortlist manufacturers willing to modify tie-down spacing eagerly. They should provide custom CNC-cut anchor points readily. These modifications match your specific fleet requirements perfectly. Avoid rigid, one-size-fits-all standard deck templates. Customization flexibility guarantees your equipment matches your daily operations. You reduce loading times and eliminate strap chafing entirely. A flexible manufacturer acts as a valuable long-term partner.
An effective deck layout balances structural integrity and precise anchor placement. High-WLL hardware protects both your valuable cargo and the operator. You must integrate anchors directly into the structural frame. Relying solely on surface decking causes inevitable securement failures. Customizing hardware types ensures versatility for varied vehicle wheelbases.
Before signing off on any new build sheet, request detailed schematics. Ask the manufacturer to verify all structural cross-member locations. Confirm their specific track mounting methods and backing plate designs. Review the aggregate WLL calculations to guarantee DOT compliance. These proactive steps ensure your trailer handles dynamic loads flawlessly.
A: DOT regulations mandate that the aggregate WLL of all tie-downs used to secure a vehicle must equal at least 50% of the vehicle's total weight. Most commercial operations require individual anchors rated at 3,333 lbs WLL or higher.
A: No. Fasteners must either be through-bolted to a steel backing plate beneath the wood or mounted directly to the trailer's steel cross-members to ensure they do not pull out under dynamic load stress.
A: Recessed tracks sit flush with the deck material. This prevents tire sidewall damage during loading/unloading and creates a smoother surface for positioning low-clearance vehicles over the securement points.
A: While custom layouts vary, standard D-rings are typically placed at the extreme corners of the deck, with additional rings spaced every 2 to 3 feet along the vehicle's track path to accommodate different wheelbases.
